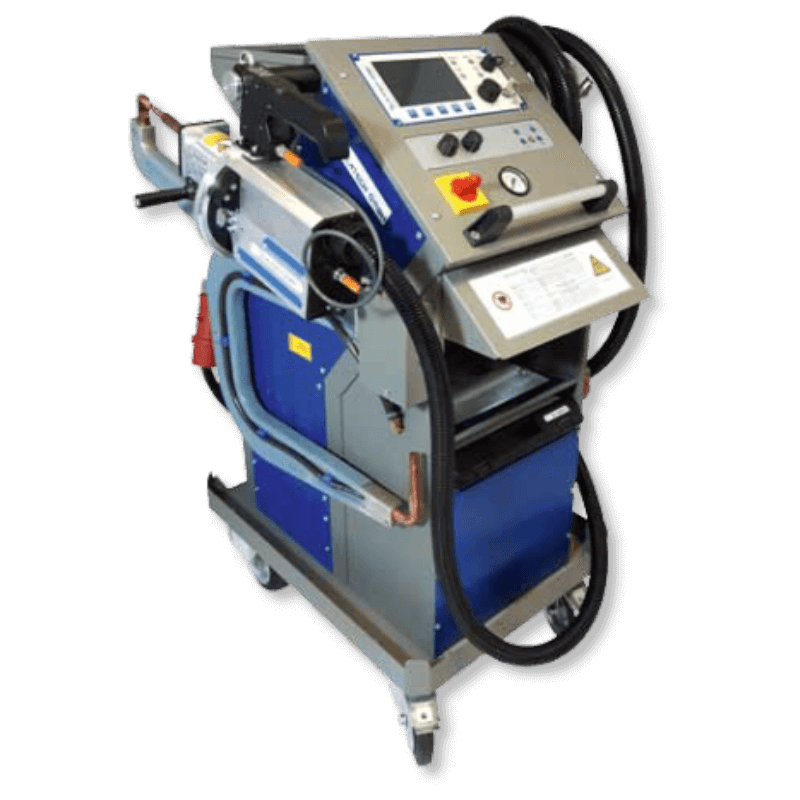

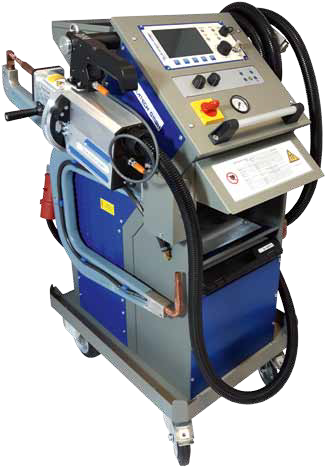

PREMIUMspot VISION
-
A multi-function spot welding machine in the premium class with complete software package for worry-free automotive repair
Fully automatic welding, particularly for components made of higher maximum strength
Coated and laminated steel panels
Aluminum welding for thin aluminum sheets up to 3 mm

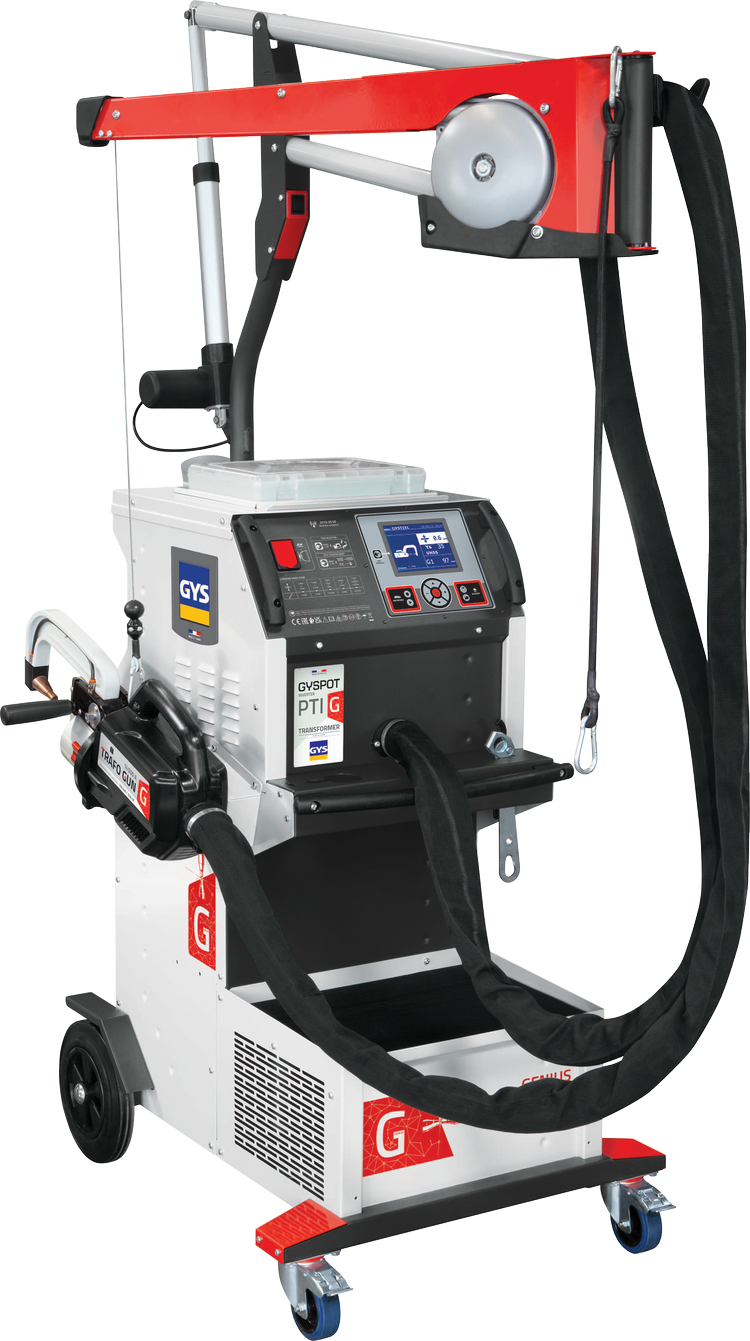

Gyspot PTI Genius (6M) - 208V
-
The GYSPOT INVERTER PTI-G spot-welder is the machine of the future. Therefore the onboard intelligence guarantees full automation, offering body shops the ability to increase their efficiency. The Genius G-clamp with pneumatic over-opening, easy-arm positioning without adjustment, motorized overhanging arm that provides a wide working area. This makes the GYSPOT INVERTER PTI-G the most advanced machine for the active collision repair shop.
Motorized, Adjustable & Ergonomic Overhanging Arm
Extends up to 120cm from the power source
Motorized overhanging arm to adapt to the working height.
Adjustable in height from 159 to 253 cm
Rubber protections at the end of moving parts
Creates easy access to the work area
Smart Welding
AUTO Mode: the machine automatically recognizes – steel type, sheet-metal thickness, Panel bond presence, and insulating material between HSS/VHSS/UHSS/Boron sheet-metal.
Traceability: The recording feature saves the characteristics of each welding spot performed to the SD card provided
Easy transfer of saved reports to PC.
Robust and Mobile
Reinforced and maneuverable trolley with 30-litre coolant tank.
Expander on the front wheels for better stability.
Integrated 6-arm support
Specifications
Welding current: 14,500 A.
Clamping force: 550 daN with 8 bar air pressure.
Liquid cooling of the entire transformer, rectifier, electrodes, and caps.
The new design of the G-clamp cylinder and welding algorithm maximizes productivity
User-friendly navigation using the 5.7″ LCD screen.
Automatic adjustment of the pressure between electrodes.
Spot count feature to determine when you need to change the caps.

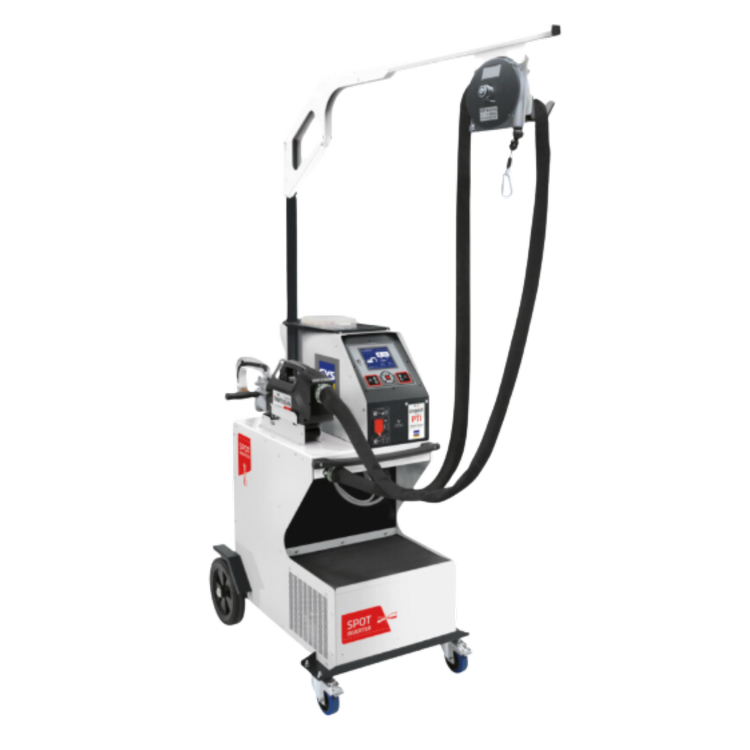

Gyspot PTI-S7 22V Evolution
-
The Gyspot-PTI-s7-220v-Evolution is the ideal answer to the welding requirements of high strength steels (UHSS/boron), with a clamping force of 550daN, with 8bars air pressure, and a welding current that can reach 14 500Amps
Its C-clamp integrates a high-tech transformer
Brings a solution to limited power supply issues, as it can operate with 16 Amps to 25 Amps fuses only
Operation is extremely easy thanks to the automatic welding parameters setting in easy mode

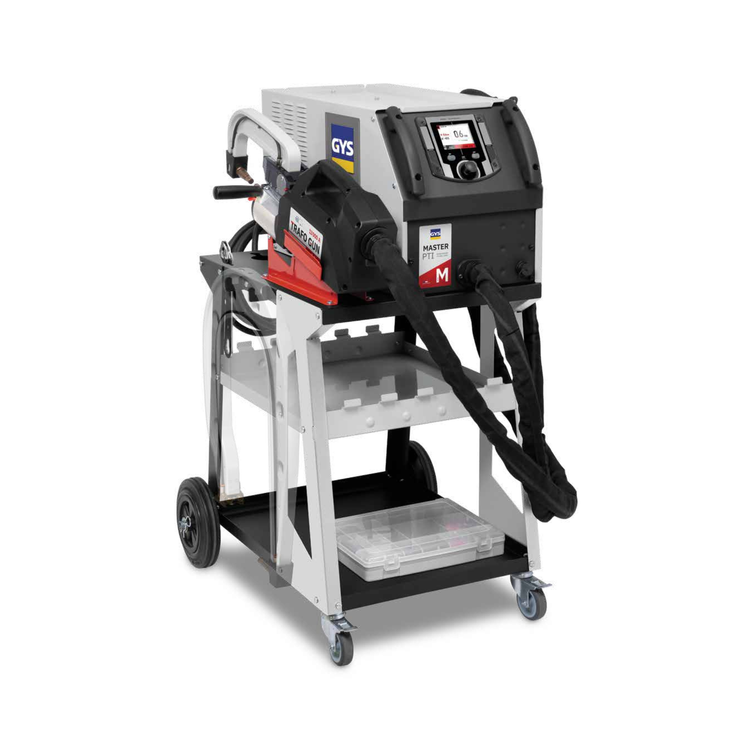

Gyspot PTI Master
-
The GYSPOT PTI MASTER is an automatic spot-welding machine designed for the assembly of car body panels. For maximum user comfort, it is equipped with a manual OVERLAP feature. The liquid-cooled gun has an integrated transformer, and is extremely light, weighing just 22.7 lbs when fitted with the G1 arm. Compact and manoeuvrable, it is ideal for workshops where space is at a premium. It features an ergonomic, user-friendly color interface.
