OEM Dodge Certified Equipment
Meets Dodge OEM specifications and approval standards.
Gyspot PTI Genius (6M) - 208V
-
The GYSPOT INVERTER PTI-G spot-welder is the machine of the future. Therefore the onboard intelligence guarantees full automation, offering body shops the ability to increase their efficiency. The Genius G-clamp with pneumatic over-opening, easy-arm positioning without adjustment, motorized overhanging arm that provides a wide working area. This makes the GYSPOT INVERTER PTI-G the most advanced machine for the active collision repair shop.
Motorized, Adjustable & Ergonomic Overhanging Arm
Extends up to 120cm from the power source
Motorized overhanging arm to adapt to the working height.
Adjustable in height from 159 to 253 cm
Rubber protections at the end of moving parts
Creates easy access to the work area
Smart Welding
AUTO Mode: the machine automatically recognizes – steel type, sheet-metal thickness, Panel bond presence, and insulating material between HSS/VHSS/UHSS/Boron sheet-metal.
Traceability: The recording feature saves the characteristics of each welding spot performed to the SD card provided
Easy transfer of saved reports to PC.
Robust and Mobile
Reinforced and maneuverable trolley with 30-litre coolant tank.
Expander on the front wheels for better stability.
Integrated 6-arm support
Specifications
Welding current: 14,500 A.
Clamping force: 550 daN with 8 bar air pressure.
Liquid cooling of the entire transformer, rectifier, electrodes, and caps.
The new design of the G-clamp cylinder and welding algorithm maximizes productivity
User-friendly navigation using the 5.7″ LCD screen.
Automatic adjustment of the pressure between electrodes.
Spot count feature to determine when you need to change the caps.
Gyspot PTI-S7 22V Evolution
-
The Gyspot-PTI-s7-220v-Evolution is the ideal answer to the welding requirements of high strength steels (UHSS/boron), with a clamping force of 550daN, with 8bars air pressure, and a welding current that can reach 14 500Amps
Its C-clamp integrates a high-tech transformer
Brings a solution to limited power supply issues, as it can operate with 16 Amps to 25 Amps fuses only
Operation is extremely easy thanks to the automatic welding parameters setting in easy mode

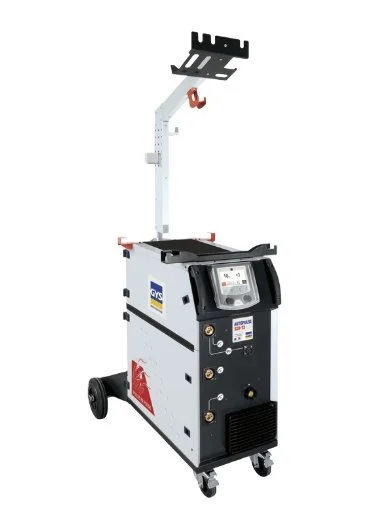

Autopulse 320-T3
-
A digital MIG/MAG double pulse generator with 3 integrated wire feeders
An extremely advanced machine with 57 synergic curves providing an exceptional arc quality
Versatile; it will hold 3 different torches to weld steel, aluminum and brazing (CuSi3/CuAl8)
User friendly interface and very precise wire feed make an outstanding quality weld on very thin sheets

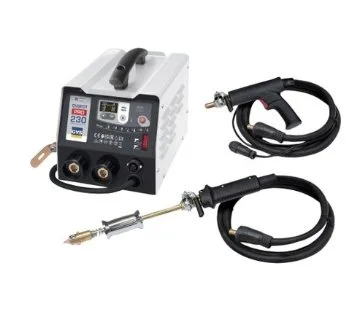

GYSPOT PRO 230
-
This 230 V, steel dent puller boasts an output current of 3,800 A making it ideal for all steel straightening
and dent-pulling applications. Its two guns (one automatic and one featuring trigger control) as well as its
user-friendly control panel automatic make this device versatile and efficient to use.

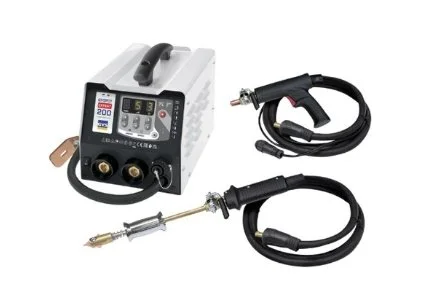

GYSPOT Expert 200
-
Dedicated for various dent pulling and straightening body shop operations, the GYSPOT EXPERT 200 is a high spec machine able to deliver up to 5100A of power. The welding current and welding duration are set separately for a more accurate control of the impact to galvanize and particularly thin steel sheet.

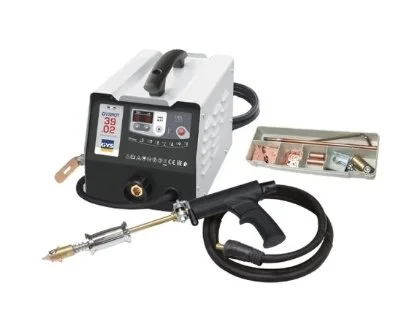

GYSPOT 39.02
-
230V, 3800A steel dent remover ideal for all steel straightening and dent removal work. Easy to use thanks to its self-priming gun and intuitive control panel.
Only 2 parameters to select:
• power level (from 11 levels)
• the tool used (from 7 tools)
=> No need to set time and intensity.
Automatic priming system
The welding point is generated automatically by simple contact between the tool and the part to be straightened.

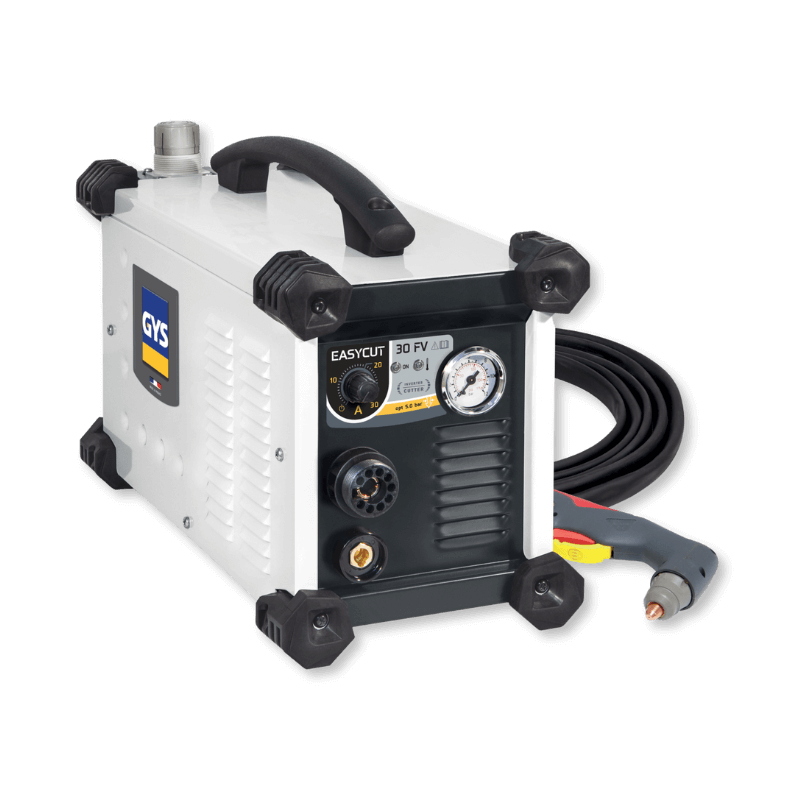

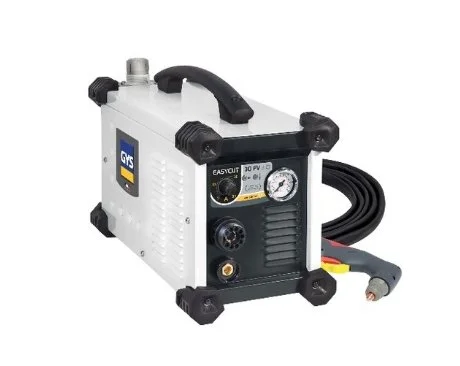

EASYCUT 30 FV (WITH TORCH)
-
EASYCUT 30 FV is a 30 A plasma cutter with a cutting capacity of 10 mm in steel (and 15 mm in separation). Its HF-free ignition system extends the life of consumables. Designed for maintenance work, such as car bodywork, it features very robust mechanics and a simple interface with flowmeter.
- Quick and easy to fit consumables
- Intuitive control panel with a single potentiometer for adjusting cutting intensity
- HF-free priming to avoid electromagnetic interference
- Manual air pressure adjustment (2.5 < 9 bar) with front-mounted flowmeter.
- Automatic torch detection
- Supplied with IPT40 torch (4 m) and earth clamp (2 m, 10 mm²)
- Single-phase power supply, with flexible voltage, between 85 and 265 V
→ Requires connection to a compressed air source

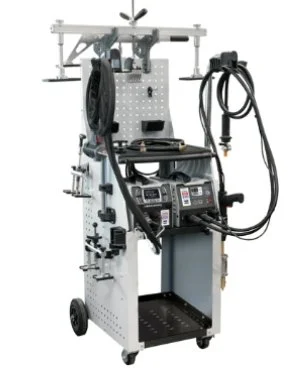

Speedliner V2 PRO 230 + ARCPULL 200

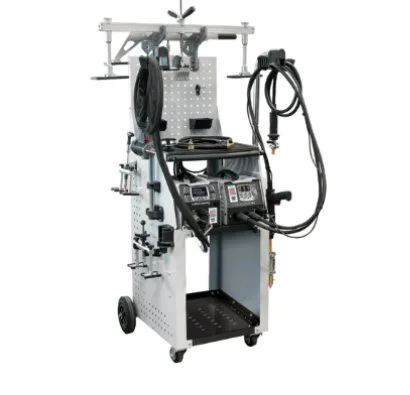

Speedliner Expert 200+ARCPULL 200
